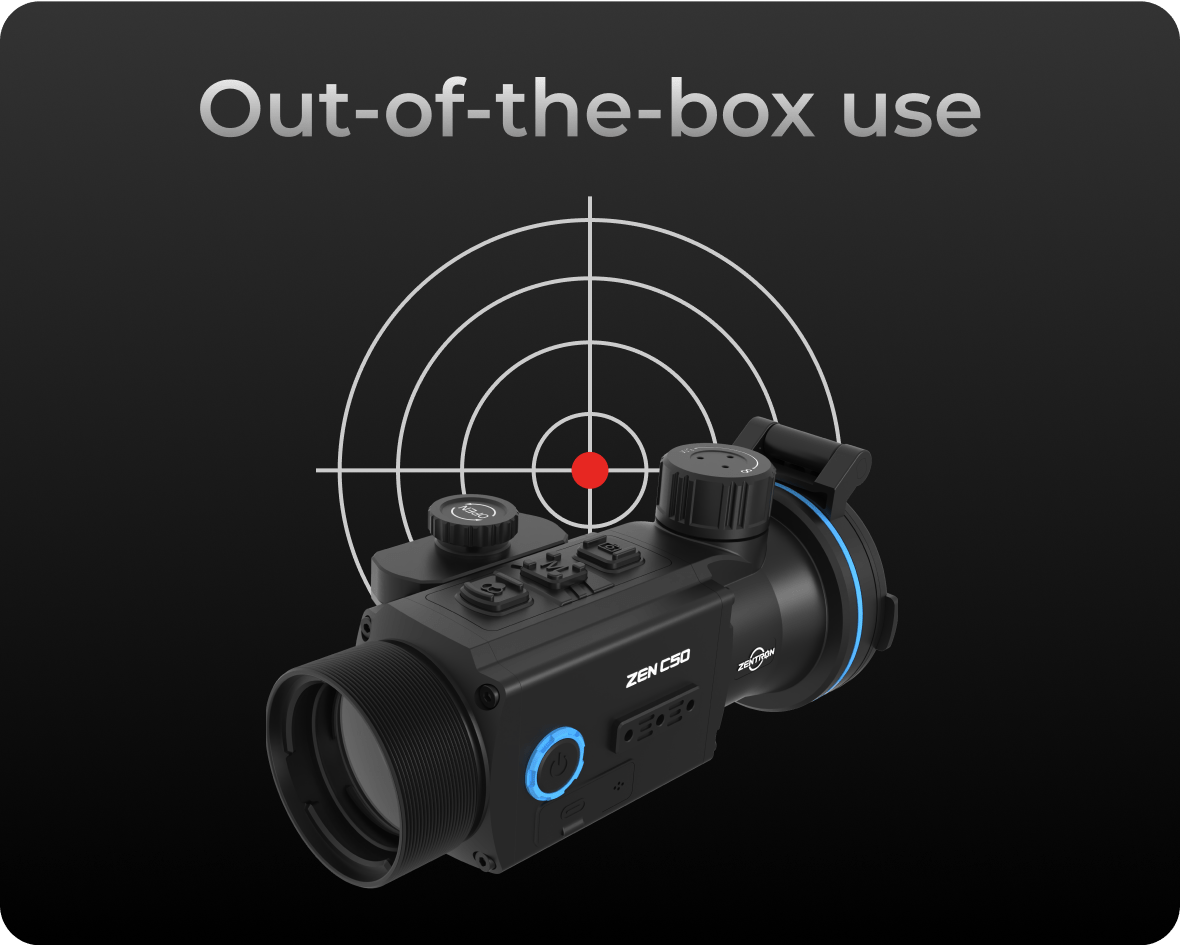

Pre-zeroed
The ZEN C series offers ultra-precise shooting with a pre-zeroing process, allowing effortless rifle swaps while maintaining a consistent point of impact, even after device removal and remounting.

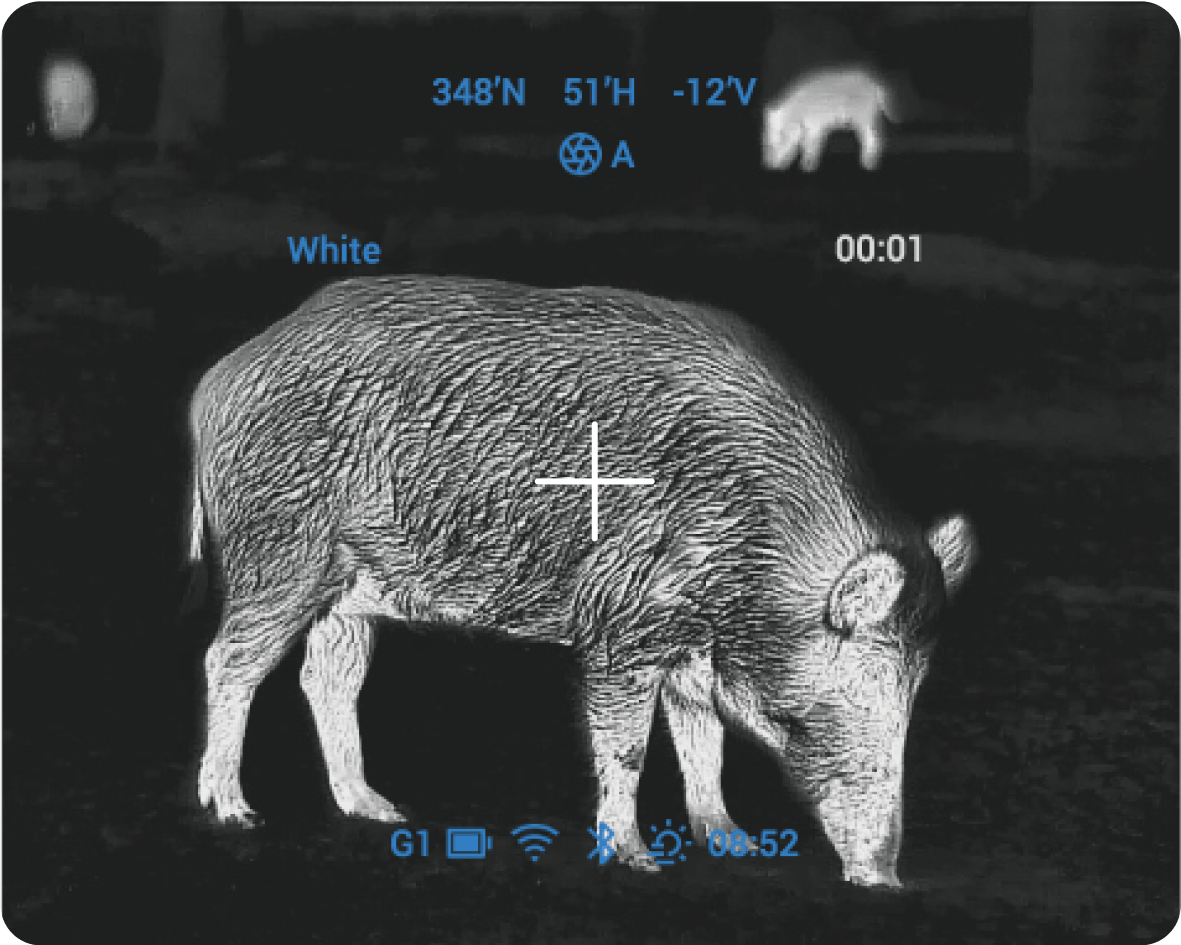

Record Reticle
When this feature is enabled, the reticle remains centered on the screen during recording, allowing users to compare the reticle's point of aim with the point of impact while reviewing the video.

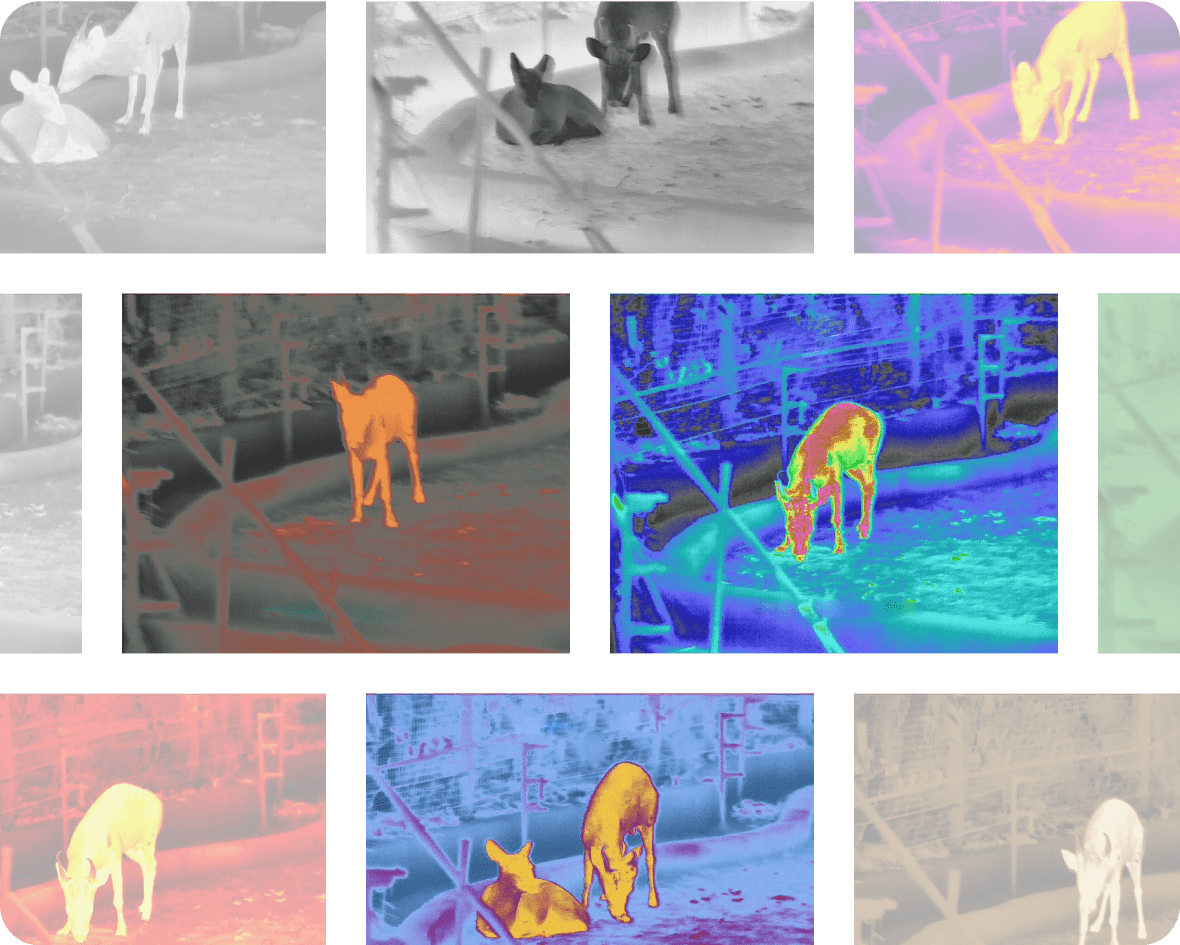

Thermal Palettes
Multiple thermal palettes are available to highlight the target, including 10 color palettes such as White Hot, Black Hot, Iron Red, Tint, Sepia, Cold Green, etc.

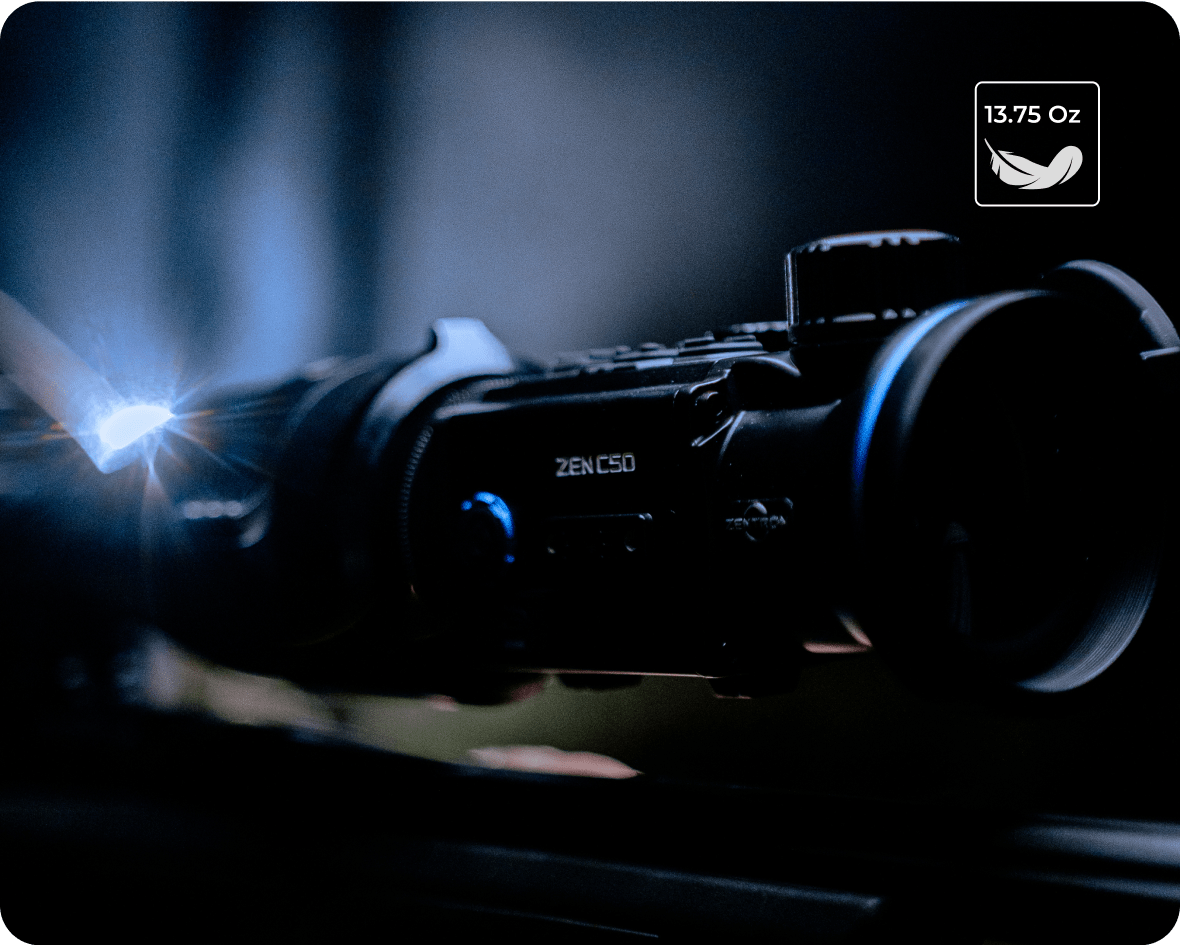

Compact & Lightweight
ZEN C50 is a lightweight and compact thermal imaging device. The weight of ZEN C35 is 14.46 Oz, and the weight of ZEN C50 is 13.75 Oz.

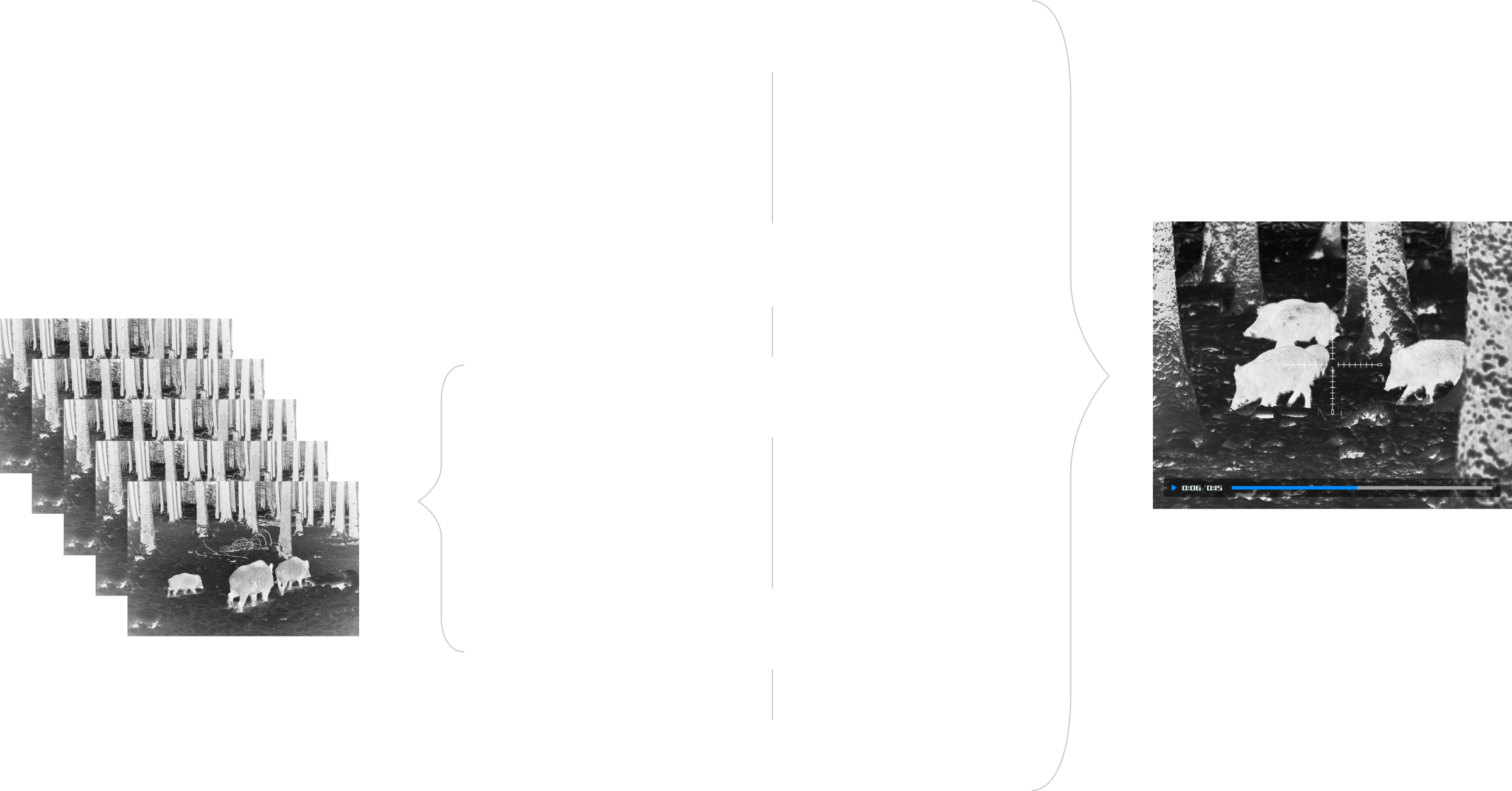

Recoil Activated Video
Automatically starts recording a few seconds before and after a shot. This hands-free feature lets you capture the excitement seamlessly.
Scenarios Comparison
- ModelC50C35
- LensF1.0 50mmF1.0 35mm
- FOV(@100 yards)12 yards10 yards
- Indentifcation range650 yards400 yards
- Detection range2800 yards1950 yards
- Sensor12μm Pixel Size 640x512 Resolution ＜25mk NETD12μm Pixel Size 384x288 Resolution ＜25mk NETD
- EnvironmentField, ForestForest, Field
- Battery2xRCR123a(3.7V)
3 hours2xRCR123a(3.7V)
4 hours
F1.0 50mm
Objective Lens
12µm 640x512
Detector
Accelerometer &
Digital compass
1280x1024
OLED display
Dual band 2.4G/5G
WiFi & Bluetooth
390 grams
Net weight
IP67
Protection Level
2600m
Max detection range
Technical Specifications
- ZEN SeriesC50C35
- Detecor TypeVOx Uncooled
- Resolution640×512384×288
- Pixel Size12μm
- Framerate50Hz
- Spectral range8~14um
- NETD≤25mk
- Optics
- Objective Lens50mm f1.035mm f1.0
- Field of View8.7°(H) × 7°(V)7.5°(H) × 5.6°(V)
- Close-up range5 yards
- Detection Range2800 yards1950 yards
- Optical magnification1×1×
- Display Parameters
- Display TypeOLED
- Display Resolution1280×1024800×600
- Functions
- E-zoomClip-on mode:×1Monocular mode:×1/×2/×4
- PalettesWhite hot/Black hot/Iron red/Tint...
- Start Up Timeless than 5 seconds
- Wifi & Bluetooth & MicSupport
- SensorsBuilt-in Accelerometer and Digital Compass
- Built-in memory32GB64GB
- Electronics
- Battery2xRCR123a(3.7V)
- Max. Battery Life4 hours3 hours
- USB InterfaceTYPE-C
- Physical
- Size5.78 × 2.55 × 2.91 inch5.59 × 2.55 × 2.48 inch
- Weight14.46 Oz13.75 Oz
- Connection ThreadM45×0.75
- Environmental
- Housing MaterialMagnesium
- Protection LevelIP67
- Operation Temp-4℉~122℉
- Storage Temp-40℉~122℉
- Max. Recoil1000g/0.4ms
