M6/M4
The ZEN M4/M6 is equipped with a powerful infrared detector and a high-definition display, while at the same time being compact and lightweight.It is mainly used for forest and field hunting, bird watching, animal search, and personnel rescue.
Laser Rangefinder

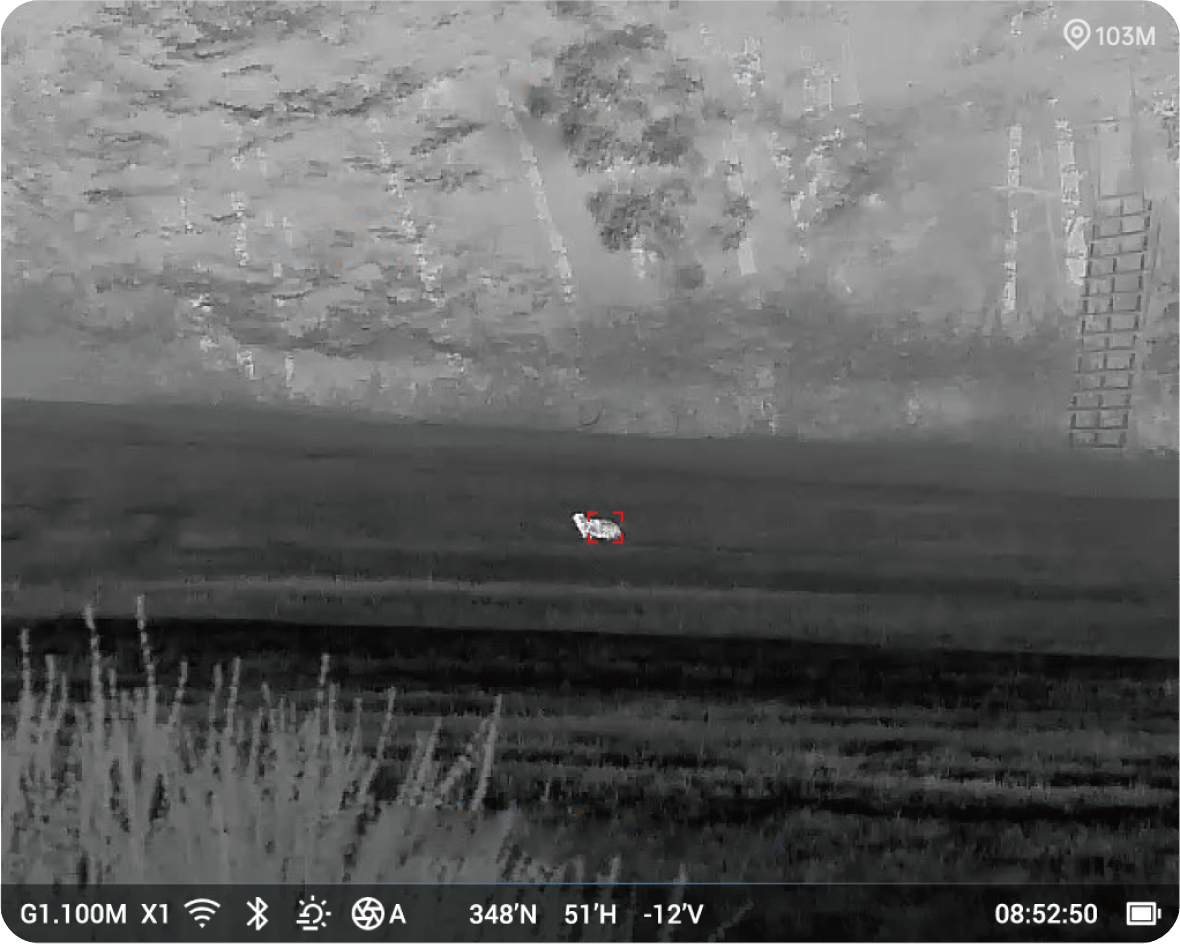

Equipped with a built-in laser rangefinder, the ZEN M4/M6 enables effortless measurement of target distances, displaying accurate readings directly on the screen.

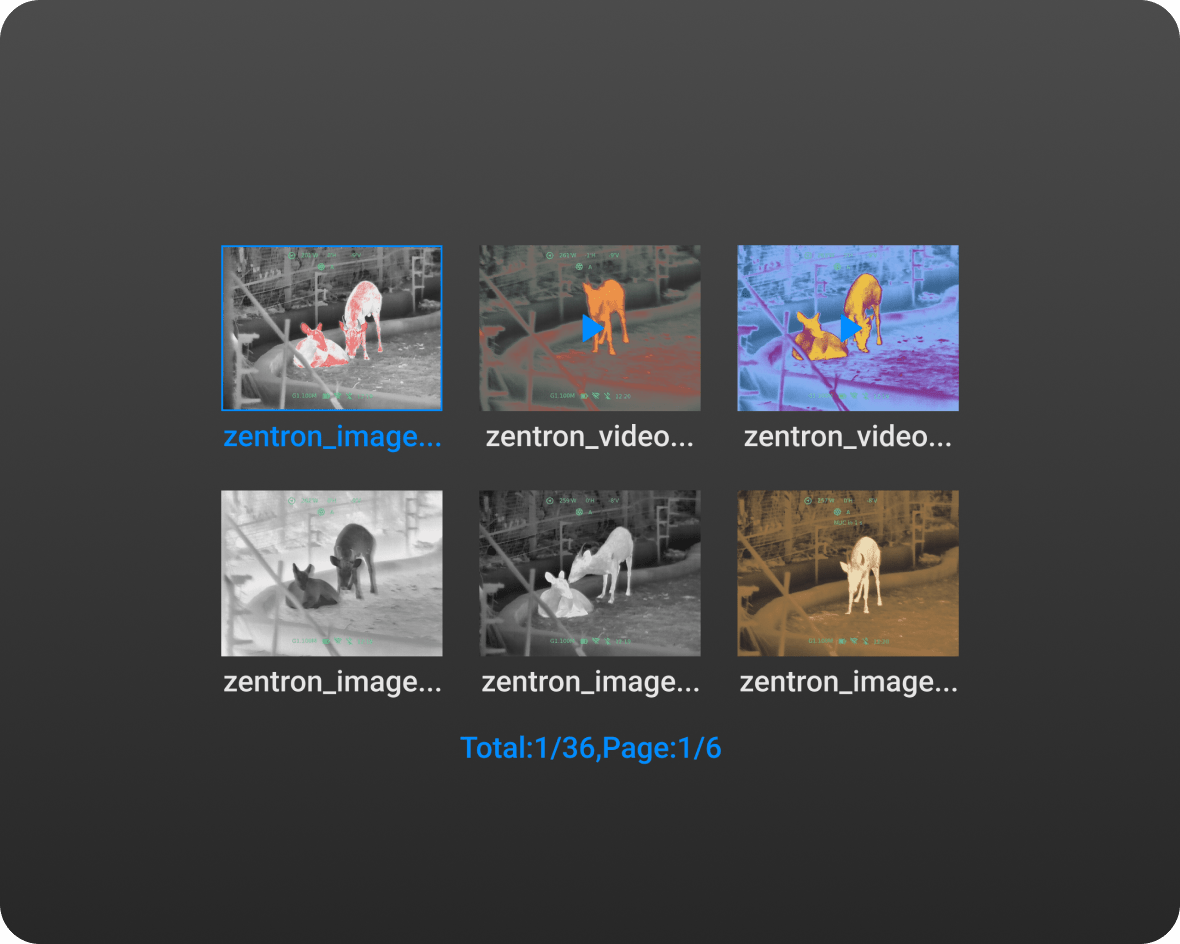

Integrated Media Library
Capture photos and videos with ease using the ZEN M4/M6. The device stores your media in its internal memory, allowing you to preview them conveniently via the menu.

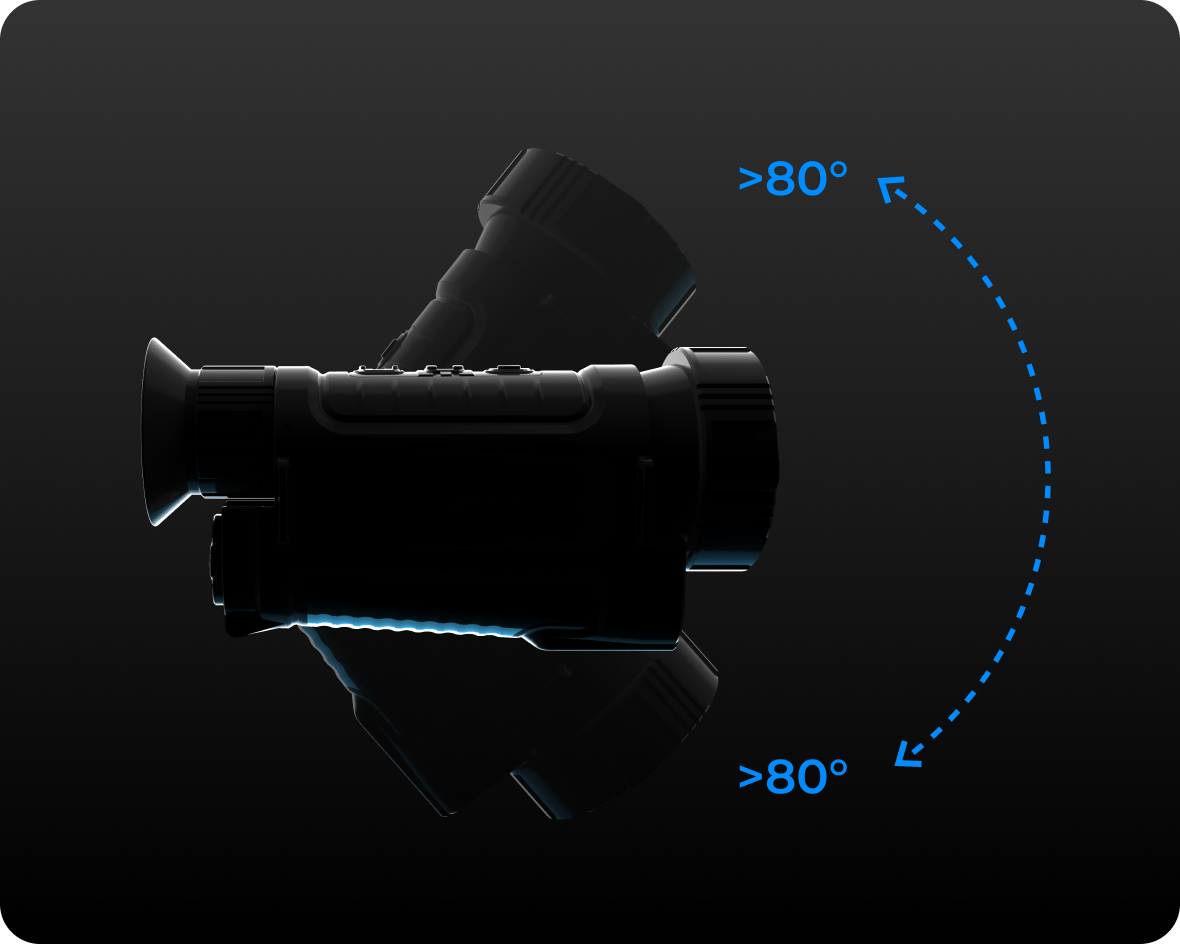

Automatic Battery-saving Mode
The integrated sensors and algorithm precisely detect the position of the device. When the device tilts upward or downward beyond 80°, the screen automatically shuts off, effectively conserving power.

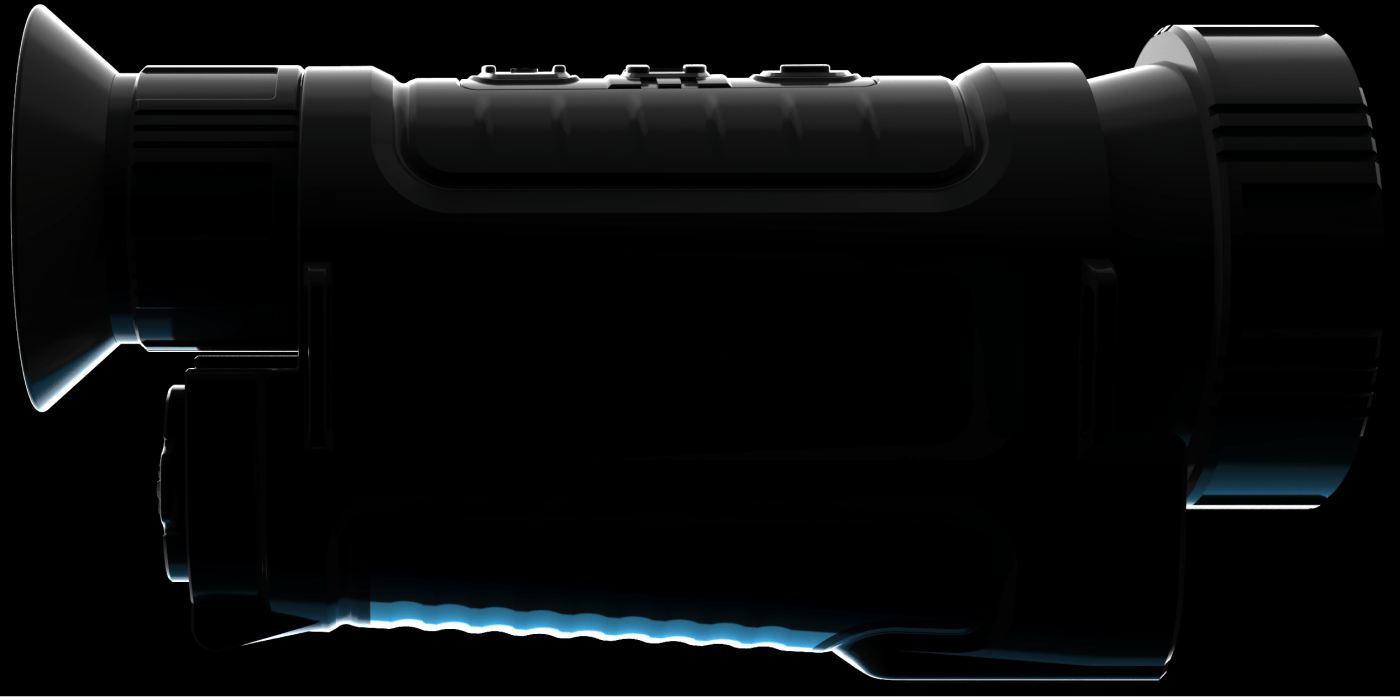

Compact & Lightweight
Designed for portability, the ZEN M4/M6 is both lightweight and compact, making it easy to carry and use in the field.
Technical Specifications
- ZEN SeriesM6M4
- Detecor TypeVOx Uncooled
- Resolution640 × 512400 × 300
- Pixel Size12μm
- Framerate50Hz
- Spectral range8~14um
- NETD≤25mk
- Optics
- Objective Lens50mm f1.035mm f1.0
- Field of View8.7°(H) × 7°(V)7.5°(H) × 5.6°(V)
- Close-up range5 yards
- Detection Range2800 yards1950 yards
- Optical magnificationF50: 2.1×
F35: 1.91×
F25: 1.38×F35: 3.3×
F25: 2.35× - Display Parameters
- Display TypeOLED
- Display Resolution1352 × 10801440 × 1080
- Functions
- E-zoom×1/×2/×4
- PalettesWhite hot/Black hot/Iron red/Tint...
- Start Up Timeless than 5 seconds
- Wifi & Bluetooth & MicSupport
- SensorsBuilt-in Accelerometer and Digital Compass
- Built-in memory64GB32GB
- Electronics
- Battery1 × 18650
- Max. Battery Life6 hours8 hours
- USB InterfaceTYPE-C
- Physical
- Size6.29 × 2.67 × 3.18 inch5.45 × 2.16 × 3.18 inch
- Weight11.28 Oz9.41 Oz
- Environmental
- Housing MaterialMagnesium
- Protection LevelIP67
- Operation Temp-4℉~122℉
- Storage Temp-40℉~122℉
