Clear Vision

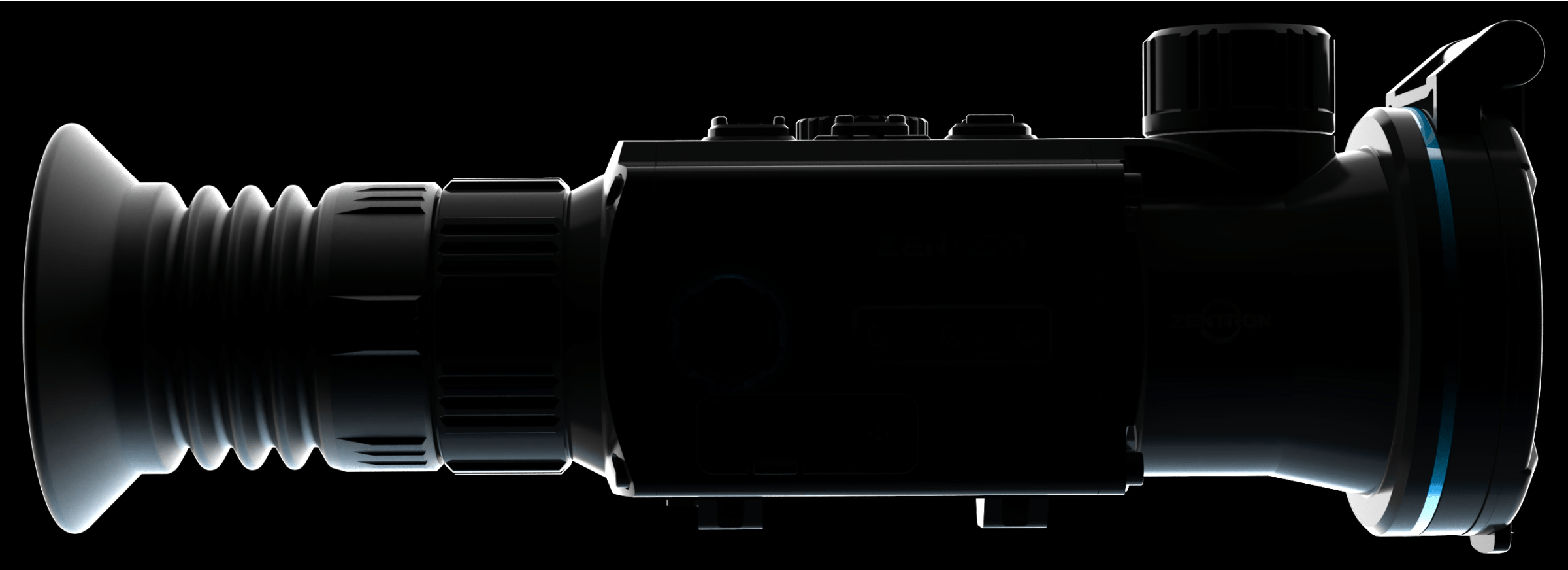

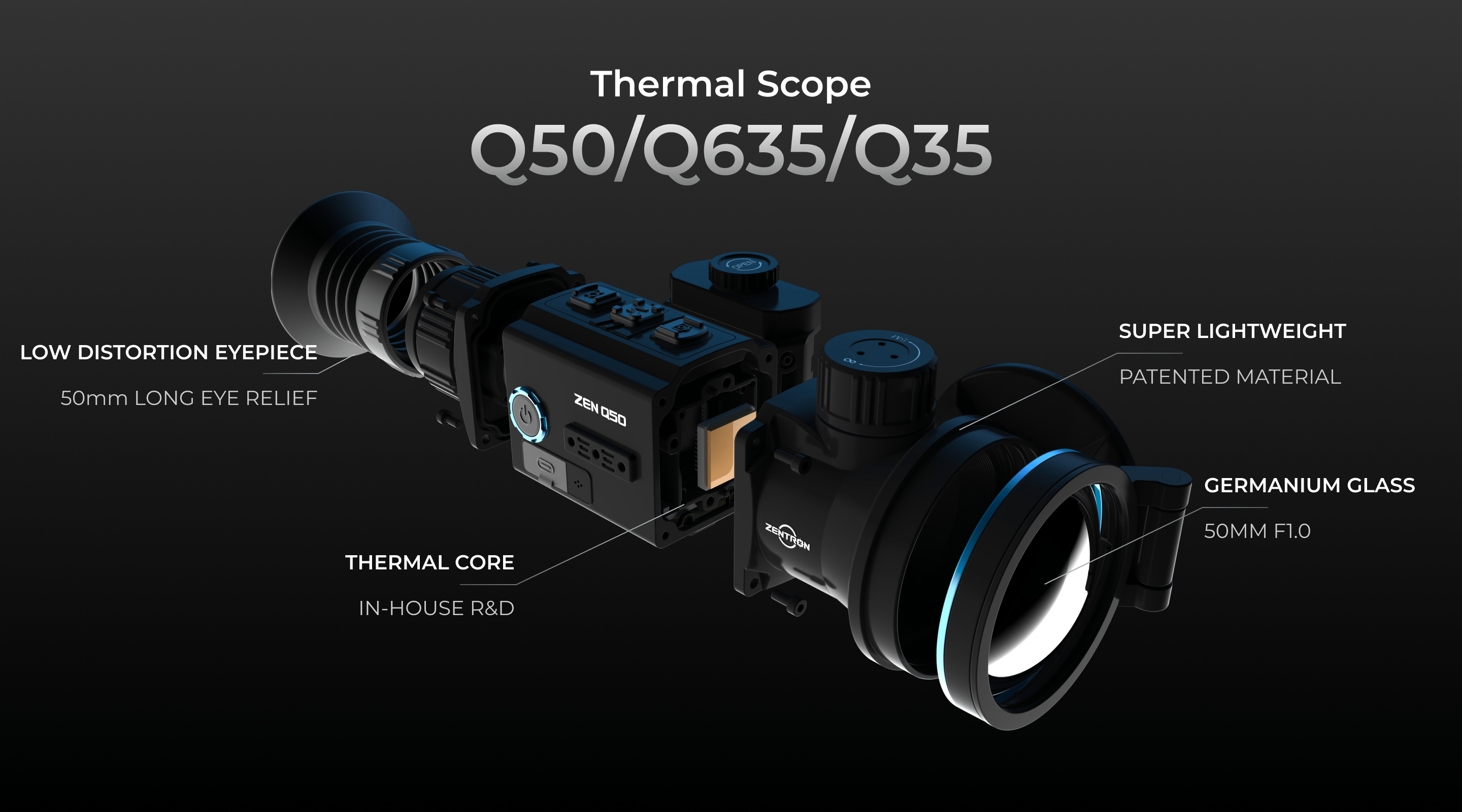

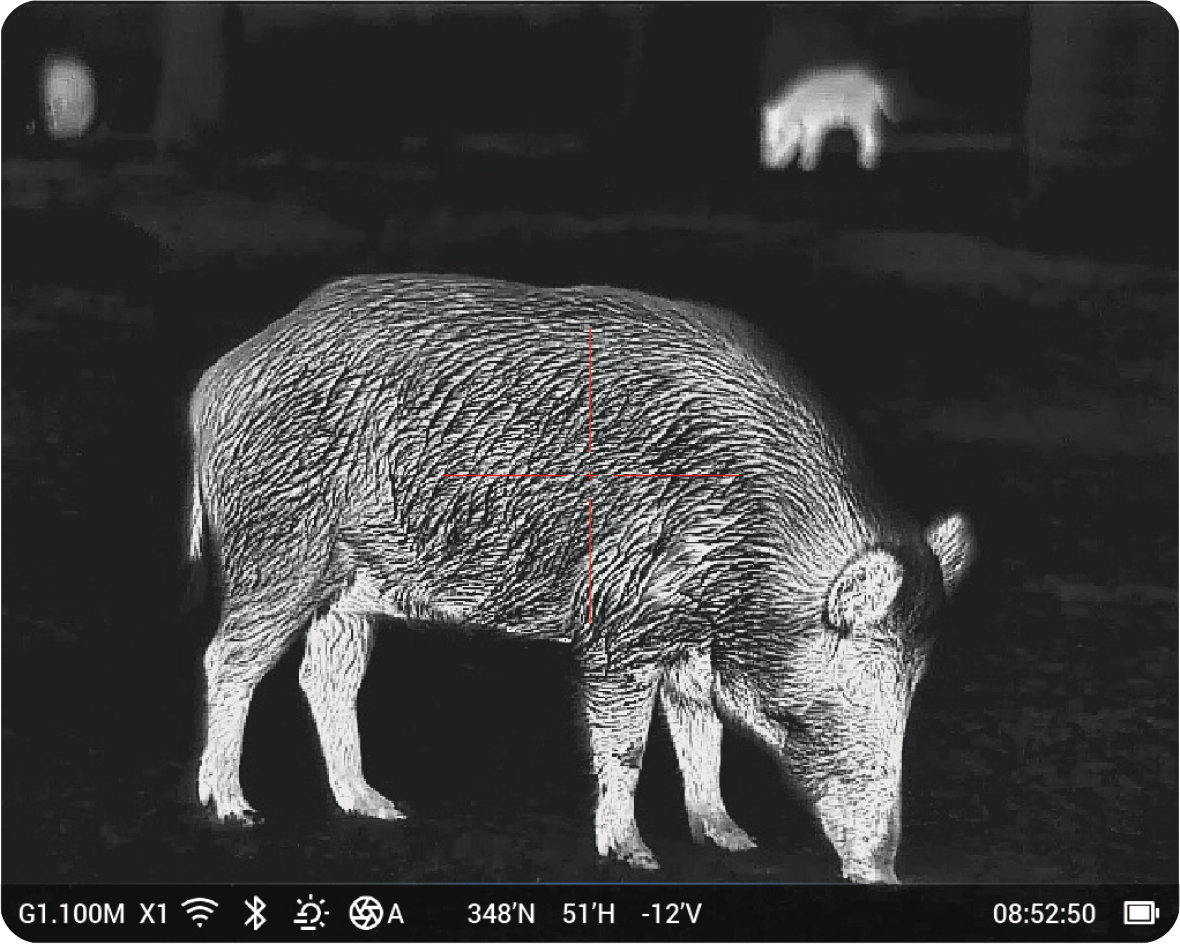

ZEN Q50 features a 50mm f/1.0 lens, 640×512 12μm detector (NETD＜25), and a sharp 1280×1024 OLED display. Designed to deliver sharp, detailed visuals in total darkness, fog, or harsh weather, this device ensures you never lose sight of your target.

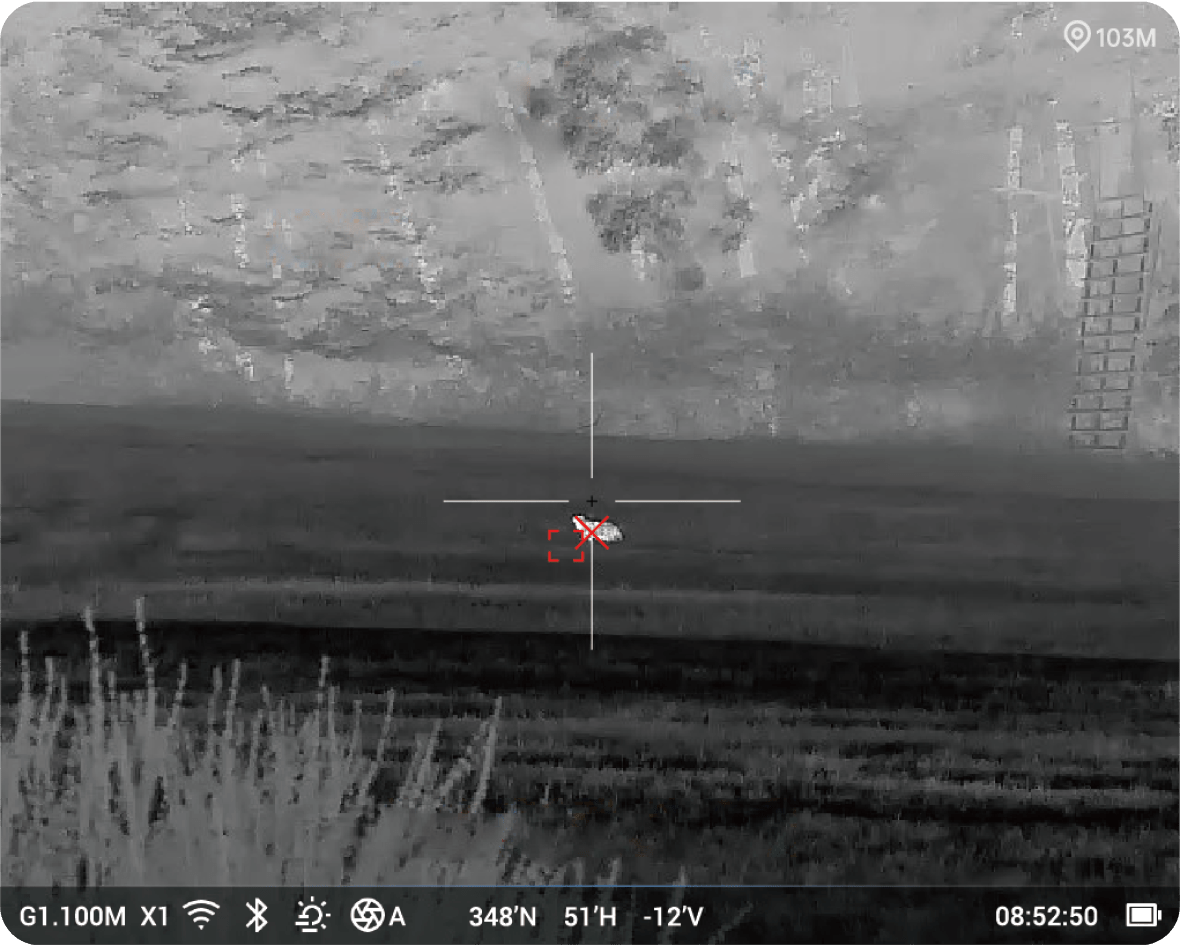

Ballistic Calculations
ZEN thermal products can be equipped with an LRF accessory, which predicts bullet trajectory based on shooting conditions, helping shooters adjust their aim for more accurate long-range shooting.

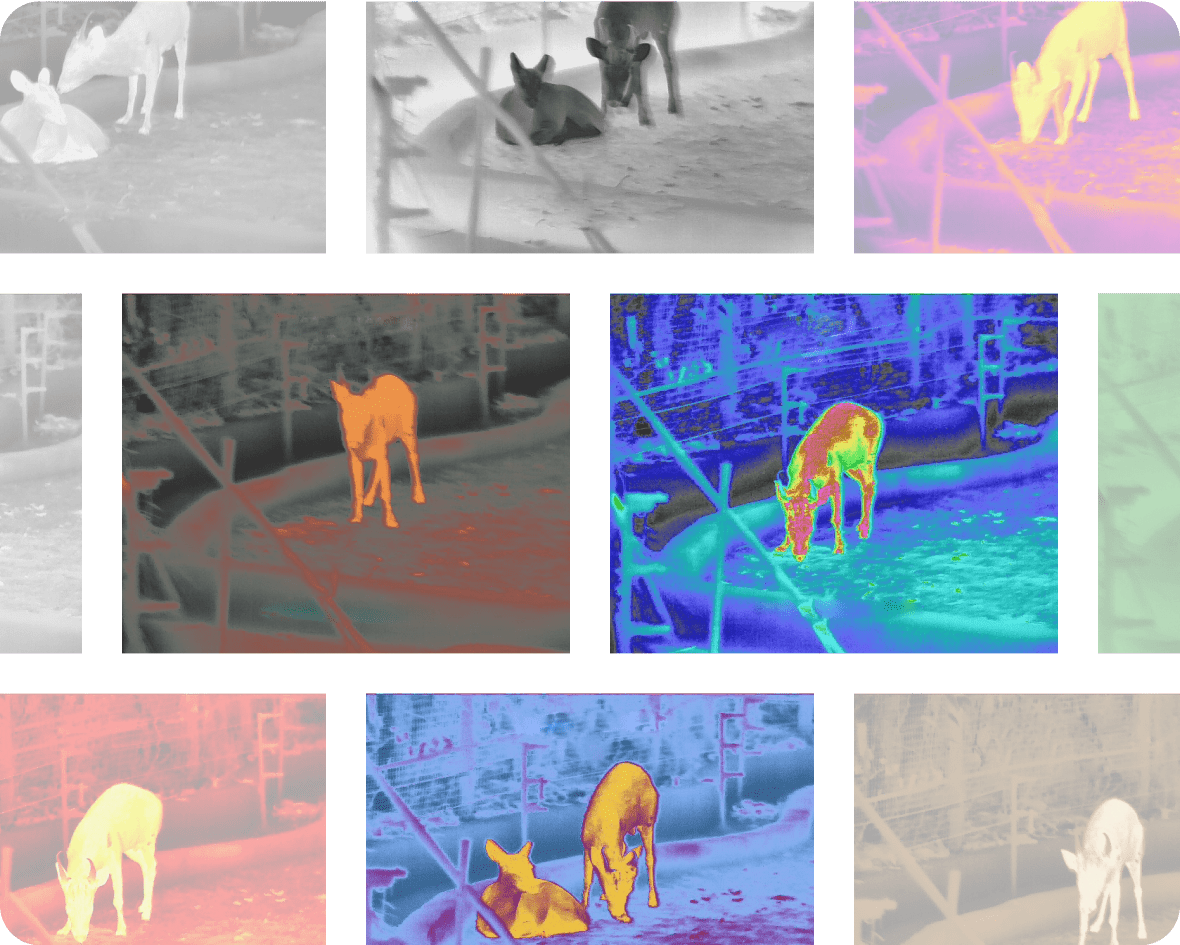

Thermal Palettes
Multiple thermal palettes are available to highlight the target, including 10 color palettes such as White Hot, Black Hot, Iron Red, Tint, Sepia, Cold Green, etc.
Compact & Lightweight
The special synthetic magnesium-aluminium housing material makes ZEN Q50/Q635/Q35 products durable and lightweight. The weight of Q50 is 15.87 Oz.
F1.0 50mm
Objective Lens
12µm 640x512
Detector
Accelerometer &
Digital compass
1280x1024
OLED display
Dual band 2.4G/5G
WiFi & Bluetooth
450 grams
Net weight
IP67
Protection Level
2 in 1
Scope & Handheld
Scenarios Comparison
- ModelQ50Q635Q35
- LensF1.0 50mmF1.0 35mmF1.0 35mm
- FOV(@100 yards)12 yards17.6 yards10 yards
- Indentifcation range650 yards600 yards400 yards
- Detection range2800 yards1950 yards1950 yards
- Sensor12μm Pixel Size 640x512 Resolution ＜25mk NETD12μm Pixel Size 640x512 Resolution ＜25mk NETD12μm Pixel Size 384x288 Resolution ＜25mk NETD
- EnvironmentField, ForestField, ForestForest, Field
- Battery2 x RCR123a(3.7V)
3 hours Max Battery Life2 x RCR123a(3.7V)
3 hours Max Battery Life2 x RCR123a(3.7V)
4 hours Max Battery Life
Technical Specifications
- ZEN SeriesQ50Q635Q35
- Detecor TypeVOx Uncooled
- Resolution640×512640×512384×288
- Pixel Size12μm
- Framerate50Hz
- Spectral range8~14um
- NETD≤25mk
- Optics
- Objective Lens50mm f1.035mm f1.035mm f1.0
- Field of View8.7°(H) × 7°(V)12.5°(H) × 10°(V)7.5°(H) × 5.6°(V)
- Close-up range5 yards
- Detection Range2800 yards1950 yards1950 yards
- Optical magnification2.24×1.57×2.27×
- Display Parameters
- Display TypeOLED
- Display Resolution1280×10241280×1024800×600
- Functions
- E-zoom×1/×2/×4
- PalettesWhite hot/Black hot/Iron red/Tint...
- Reticle type9
- Reticle colors6(5 colours,1 auto colour)
- Wifi & Bluetooth & MicSupport
- Built-in memory64GB64GB32GB
- P.I.P×2/×4/×8
- Eye Relief52mm
- Diopter Range-5~+5
- RangefinderLRF accessory
- Electronics
- Battery2 x RCR123a(3.7V)
- Max. Battery Life3 hours3 hours4 hours
- USB InterfaceTYPE-C
- Size6.22 × 2.55 × 2.91 inch5.9 × 2.55 × 2.48 inch5.9 × 2.55 × 2.48 inch
- Weight15.87 Oz16.64 Oz16.64 Oz
- Environmental
- Housing MaterialMagnesium
- Protection LevelIP67
- Operation Temp-4℉~122℉
- Storage Temp-40℉~122℉
- Max. Recoil1200g/ms
